Product DetailSpecification/DimensionsĐặc điểm kỹ thuật / Kích thướcĐặc điểm kỹ thuật / Kích thước
-
Cleaning Method
- Degreasing
- Precision Cleaning
- Electrolytic polishing + precision cleaning
-
Surface Treatment
- Black anodizing
- Electroless nickel plating
- N/A
-
Mounting Hole Alteration for Covers
- C (Cover mounting tapping)
- N/A
-
Accessory
- N/A
- SSP (Stainless steel bolt / post-assembly insertion spring nut set)
- SST (Stainless steel bolt / nut set)
- SSU (Stainless steel bolt / pre-assembly insertion spring nut set)
-
Applicable Screws
-
type
- SH-HBLFSN6
- SH-HBLFSN6-5
- SH-HBLFSNB6
- SH-HBLFSNM6
- SHD-HBLFSN6
- SHD-HBLFSN6-5
- SL-HBLFSN6
- SL-HBLFSN6-5
- SL-HBLFSNB6
- SL-HBLFSNM6
-
CADCAD
- 2D
- 3D
Days to ShipSố ngày giao hàng
-
- Alltất cả các
- 6 Day(s) or Less
Specify AlterationsChỉ định thay đổi
[Clean & Pack]6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets
![[Clean & Pack]6 Series (Slot Width 8 mm) - For 1 Slot, Reversal Tabbed Brackets](http://vn.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310995399_001.jpg?$product_main$)
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- From :
- 76,594VND/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
thận trọng
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Similar Products
Product DetailProduct Description
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| · Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| · Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| · Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Process |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

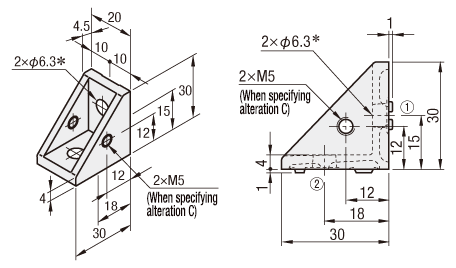

It is possible to connect by both L and Cross-Connections. Brackets do not protrude from the extrusions even in cross-connecting.
* ø5.2 for M5 Bolt
Since the holes (1) and (2) are close to each other, insert the screw from (1).
For details, please see "How to install screws with spring washers (Alteration: SEC)" below.
| Part Number | [ M ] Material | [ S ] Surface treatment | Cleaning Method | ||||
| For M6 Bolt | For M5 Bolt | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-HBLFSN6 | SL-HBLFSN6−5 | ADC12 | — | Degreasing | General environment | Anti-rust packing | General environment |
| SH-HBLFSN6 | SH-HBLFSN6−5 | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||
| SHD-HBLFSN6 | SHD-HBLFSN6−5 | Electrolytic polishing + precision cleaning | |||||
| SL-HBLFSNB6 | — | Black Anodize | Degreasing | General environment | Anti-rust packing | General environment | |
| SH-HBLFSNB6 | — | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||
| SL-HBLFSNM6 | — | Electroless Nickel Plating | Degreasing | General environment | Anti-rust packing | General environment | |
| SH-HBLFSNM6 | — | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||
[!] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the
specification table.Specification Table
| Part Number |
| SL-HBLFSN6 |
| Part Number | Mass | Applicable Screw, T Nut | Allowable Load | |||
| (g) | Bolt | Quantity | T Nut | Quantity | (N) | |
| SL-HBLFSN6 | 15 | SCB6-12 | 2 | HNTTSN6-6 | 2 | 1176 |
| SH-HBLFSN6 | ||||||
| SHD-HBLFSN6 | ||||||
| SL-HBLFSN6−5 | SCB5-12 | HNTTSN6-5 | ||||
| SH-HBLFSN6−5 | ||||||
| SHD-HBLFSN6−5 | ||||||
| SL-HBLFSNB6* | SCB6-12 | HNTTSN6-6 | ||||
| SH-HBLFSNB6* | ||||||
| SL-HBLFSNM6 | ||||||
| SH-HBLFSNM6 | ||||||
Alterations
| Part Number | — | (C·SST·SSU·SSP) |
| SL-HBLFSN6 | — | SST |
| SL-HBLFSN6 | — | C-SST |
| Alterations | Code | Spec. | Applicable Bracket |
| Mounting Hole Alteration for Cover | C | Adds taps on a bracket for cover mounting. (M5 on Both Sides) (Mounting Screw HCBM)  | HBLFSN6 |
| HBLFSN6－5 | |||
| HBLFSNB6 | |||
| HBLFSNM6 | |||
| CHBLFSN6 | |||
| HBLFS6 | |||
| HBLFSB6 | |||
| HBLFSL6 | |||
| HBLFSR6 | |||
| HBLFSNK6 | |||
| HBLFSNE6 | |||
| HBLFSH6 |
● Specify alteration code C.
| Alterations | Code | Spec. | Applicable Bracket | |||||||||||||||||||||
| Applicable Bolts and Nuts Set | SST (Stainless Steel) SSU (Pre-Assembly Insertion Spring Nut Stainless Steel) SSP (Post-Assembly Insertion Spring Nut Stainless Steel) | Applicable screws and nuts for fixing the brackets on extrusions come in a set. (Example) When HBLFS6 is specified
[ ! ] When specifying other than HBLFS6, check for the applicable bolts and nuts. | — | |||||||||||||||||||||
| HBLFSN6 | ||||||||||||||||||||||||
| HBLFSN6－5 | ||||||||||||||||||||||||
| HBLFSNB6 | ||||||||||||||||||||||||
| HBLFSNM6 | ||||||||||||||||||||||||
| CHBLFSN6 | ||||||||||||||||||||||||
| HBLFS6 | ||||||||||||||||||||||||
| HBLFSB6 | ||||||||||||||||||||||||
| HBLFSL6 | ||||||||||||||||||||||||
| HBLFSR6 | ||||||||||||||||||||||||
| HBLFSNK6 | ||||||||||||||||||||||||
| HBLFSNE6 | ||||||||||||||||||||||||
| HBLFSH6 | ||||||||||||||||||||||||
[ ! ] For set combinations, see "Set of applicable Screws and Nuts Details" below.
[ ! ] The part numbers are those of the products before cleaning.
■Mounting Hole Alteration for Cover (-C)
M5 tapped holes can be added on both sides.
Alteration Part Number Example: HBLFSN6-C
■Set of applicable Screws and Nuts Details
| Alteration part number | Bolt | Nut | ||||
|---|---|---|---|---|---|---|
| Part Number | Material | Type | Part Number | Material | Stopper | |
| SST | SCB6-12 | Stainless Steel | Pre-Assembly | HNTTSN6-6 | Stainless Steel | None |
| SSU | SCB6-12 | Stainless Steel | Pre-Assembly | SHNTU6-6 | Stainless Steel | Provided |
| SSP | SCB6-12 | Stainless Steel | Post-Assembly | SHNTP6-6 | Stainless Steel | Provided |
* For HBLFSN6-5 only, applicable screws and nuts are for M5 screws.
App. Example
Features: This type has tabs to fit extrusions and stop when tightening.
Since the tabs stop rotating the brackets when tightening, work efficiency is improved.
Can be installed in either direction.

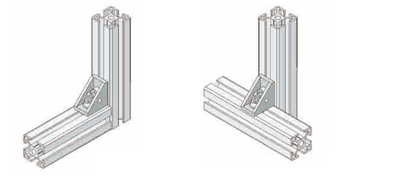

L-Connection
Cross-Connection
Technical Information
■How to Specify Allowable Load of Bracket
Allowable Load here means the load under which the bracket can stays at its position (without fracturing or sliding), after all of its mounting holes are fixed with screws.
Product Comparison Information
There are two types of aluminum extrusions connections.
| Bracket Connection |  | Inserts nuts into the slots of aluminum extrusions and fix with screws. Economical and mountable at desired positions since alterations on extrusions are not required. |
|---|---|---|
| Joint Connection Blind |  | Adds hole alterations on the extrusion sides and connects with special joints. Connection without brackets produces clean corners. Recommended where interference needs to be avoided. |
Cleaning Process
* Stainless steel products may be used with alkaline hot pure water. There is no change in cleanliness.
* If the surface treatment is low-temperature black chrome plating, IPA cleaning will be applied.
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning |  |  High-pressure jet washing (Ro water) followed by pure water cleaning | |  Oil-free Compressor Used | |  Anti-rust single packing |
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10 clean environment |
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10 clean environment |
Packaging Example| For degreasing: (Part Number: SL-□□)  Depending on some products and dimensions, packaging type may vary. | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to ShipSố ngày giao hàng | Cleaning Method | Surface Treatment | Mounting Hole Alteration for Covers | Accessory | Applicable Screws |
|---|---|---|---|---|---|---|---|---|---|
102,251 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | N/A | M6 bolt | |
102,251 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | N/A | M5 bolt | |
106,109 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | N/A | M5 bolt | |
135,048 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
127,331 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M5 bolt | |
146,624 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
131,190 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
123,473 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SST (Stainless steel bolt / nut set) | M5 bolt | |
140,836 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
106,109 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | N/A | M6 bolt | |
135,048 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
127,331 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M6 bolt | |
146,624 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
131,190 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
123,473 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SST (Stainless steel bolt / nut set) | M6 bolt | |
140,836 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
115,756 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Black anodizing | N/A | N/A | M6 bolt | |
127,331 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Black anodizing | C (Cover mounting tapping) | N/A | M6 bolt | |
111,897 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | N/A | N/A | M6 bolt | |
115,756 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | C (Cover mounting tapping) | N/A | M6 bolt | |
144,695 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
136,977 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M6 bolt | |
154,341 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
140,836 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
133,119 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | N/A | SST (Stainless steel bolt / nut set) | M6 bolt | |
150,482 VND | 1 Piece(s) | Available | 6 Day(s) or more | Precision Cleaning | Electroless nickel plating | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
118,650 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | N/A | M6 bolt | |
118,650 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | N/A | M5 bolt | |
123,087 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | N/A | M5 bolt | |
152,412 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
143,730 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M5 bolt | |
162,251 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
147,974 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
139,293 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SST (Stainless steel bolt / nut set) | M5 bolt | |
157,814 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
123,087 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | N/A | M6 bolt | |
156,182 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
143,730 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M6 bolt | |
162,259 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
153,867 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
139,293 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SST (Stainless steel bolt / nut set) | M6 bolt | |
160,812 VND | 1 Piece(s) | Available | 6 Day(s) or more | Electrolytic polishing + precision cleaning | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
76,594 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | N/A | M6 bolt | |
77,755 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | N/A | M5 bolt | |
82,677 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | N/A | M5 bolt | |
113,063 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
100,330 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M5 bolt | |
118,272 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
107,854 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M5 bolt | |
95,121 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SST (Stainless steel bolt / nut set) | M5 bolt | |
113,352 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M5 bolt | |
77,747 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | N/A | M6 bolt | |
119,140 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
101,198 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SST (Stainless steel bolt / nut set) | M6 bolt | |
125,217 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | C (Cover mounting tapping) | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
116,825 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SSP (Stainless steel bolt / post-assembly insertion spring nut set) | M6 bolt | |
100,330 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SST (Stainless steel bolt / nut set) | M6 bolt | |
123,770 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | N/A | N/A | SSU (Stainless steel bolt / pre-assembly insertion spring nut set) | M6 bolt | |
88,175 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | Black anodizing | N/A | N/A | M6 bolt | |
98,392 VND | 1 Piece(s) | Available | 6 Day(s) or more | Degreasing | Black anodizing | C (Cover mounting tapping) | N/A | M6 bolt |
Loading...Tải…
Basic InformationThông tin cơ bản
| Bracket Type | Tabbed Brackets | Environmentally Friendly | RoHS compliant (10 substances) | Additional Functions (Tabbed Bracket) | Standard |
|---|---|---|---|---|---|
| Properties / applications | Clean washing | Tab Position | Tabbed at Both Sides | Compatible Extrusion Width(mm) | 30 |
| Compatible No. of Slots | 1 Slot | Perpendicularity | With standard | Series | MISUMI Brackets for 6 Series (Extrusion Slot Width 8mm) |
| Material | ADC12 | Extrusion No. | 6 | Extrusion Size | For 30/60 |
| Bracket Type | Tabbed Reversal Brackets | Number of Extrusion Connection Holes | 2 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer toCác thông số kỹ thuật và kích thước của mã sản phẩm có thể không được bao phủ đầy đủ. Để biết chi tiết chính xác, hãy tham khảo manufacturer catalogsdanh mục nhà sản xuất ..
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
