[Clean & Pack]Resin Washers - Flanged Solid / Flanged

[Clean & Pack]Resin Washers - Flanged Solid / Flanged
You can add up to 6 items per a category to the compare list.

Brand :

MISUMI

MISUMI

Part Number :
20 Part Numbers Available

SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[4-20/0.5]-H[23-60/1]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[4-20/0.5]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[21-48/1]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[21-48/1]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[21-48/1]-H[23-60/1]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJF-D[21-48/1]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[4-20/0.5]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[4-20/0.5]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[4-20/0.5]-H[23-60/1]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[4-20/0.5]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[21-48/1]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[21-48/1]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[21-48/1]-H[23-60/1]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

SH-FWHJP-D[21-48/1]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]

SH-FWNJF-D[6-20/0.5]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]

SH-FWNJF-D[21-50/1]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]

SH-FWNJP-D[6-20/0.5]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]

SH-FWNJP-D[21-50/1]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]

SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[0,2,2.6]-T[1-8/0.5]-L[2-10/0.5]

Copy Part Number URL to Clipboard

The part number URL has been copied into your clipboard.

Close

loading
  • Order Qty :
  • Price :
    ---
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

(i)

Caution

thận trọng

  • There is no discoloration or dimensional change due to washing.

CAD Download
  • Order Qty.Số lượng đặt hàng :

    Check Price / Days to ship

  • PriceĐơn giá :
    ---
  • Total PriceTổng合計합계 :
    ---
  • Days to shipThời gian xuất hàng出荷日출하일 :
    ---
My Components
  • Order Qty.Số lượng đặt hàng :

    Check Price / Days to ship

  • PriceĐơn giá :
    ---
  • Total PriceTổng合計합계 :
    ---
  • Days to shipThời gian xuất hàng出荷日출하일 :
    ---
My Components
  • Order Qty.Số lượng đặt hàng :

    Check Price / Days to ship

  • PriceĐơn giá :
    ---
  • Total PriceTổng合計합계 :
    ---
  • Days to shipThời gian xuất hàng出荷日출하일 :
    ---
Similar ProductsSimilar Products
  • Order Qty.Số lượng đặt hàng :

    Check Price / Days to ship

  • PriceĐơn giá :
    ---
  • Total PriceTổng合計합계 :
    ---
  • Days to shipThời gian xuất hàng出荷日출하일 :
    ---
Product DetailProduct Detail

Product Description

Two types of cleaning methods are available: degreasing and precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
Cleaning Method Part Number Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Use case
Degreasing SL-□□ Anti-rust packing Removal of organic stains General environment Regular assembly process
Post battery assembly process
Precision cleaning SH-□□ Degassing double packing Removal of organic stains
Contamination and dust removal		 Clean environment
(Class 10 to 1,000)		 Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

A resin washer with flanged solid and flange.

Flanged Solid Flanged
[!] Chamfer without instructions: C0.5 or Less
Type[M] MaterialColorCleaning Method
Flanged SolidFlangedCleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SL-FWNJFSL-FWHJFFluororesinWhiteDegreasingGeneral environmentSingle PackagingGeneral environment
SH-FWNJFSH-FWHJFPrecision cleaningClass 1,000Degassing double packingClass 10
SL-FWNJPSL-FWHJPPEEKGrayDegreasingGeneral environmentSingle PackagingGeneral environment
SH-FWNJPSH-FWHJPPrecision cleaningClass 1,000Degassing double packingClass 10
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pcs., they are packed in 1 package (incl. 20 pcs.).
[ ! ] See thedetails of degreasing and precision cleaning shown at the bottom of the specification table.

Specification Table

Part Number—D—V—H—T
SL-FWNJF—D19.5—V11.5—H10.5—T25.0
Part Number—D—H—V—T—L
SH-FWHJP—D20—H30—V10.5—T2.5—L8.5
■Flanged Solid
Part NumberDVHT
0.5 mm0.5 mm0.5 mm
IncrementsIncrementsIncrements
SL-FWNJF6.0 to 10.02.0 to 8.02.0 to 28.03.0 to 10.0
SH-FWNJF(0.5 mm Increments)10.5 to 20
SL-FWNJP 20.5 to 30
SH-FWNJP10.5 to 204.0 to 18.03.0 to 10.0
 (0.5 mm Increments)10.5 to 20
  20.5 to 30
 21 to 3010.0 to 28.03.0 to 10.0
 (1 mm Increments)10.5 to 20
  20.5 to 30
 31 to 4015.0 to 38.02.0 to 38.05.0 to 10.0
 (1 mm Increments)10.5 to 20
  20.5 to 30
  30.5 to 40
 41 to 5020.0 to 48.02.0 to 48.010.0 to 20.0
 (1 mm Increments)20.5 to 30
  30.5 to 40
  40.5 to 50
Machining Conditions [ ! ] V ≤ D−2 [ ! ] V × 3 ≥ T−H ≥ 1 [ ! ] V ≤ 2.5 to T ≤ 10 [ ! ] V = 3.0 to T ≤ 20
■Flanged
Part NumberDHVTL
0.5 mm increments0.5 mm increments0.5 mm increments
(V Dimension 3 or More)
SL-FWHJF
SH-FWHJF
SL-FWHJP
SH-FWHJP		4.0 to 106.0 to 200
2
2.6
3.0 to 55.0		1.0 to 8.02.0 to 5.5
(0.5 mm Increments)(0.5 mm Increments)6.0 to 10.0
10.5 to 2012.5 to 302.0 to 5.5
(0.5 mm Increments)(0.5 mm Increments)6.0 to 10.0
21 to 3023 to 402.0 to 5.5
(1 mm Increments)(1 mm Increments)6.0 to 10.0
31 to 4033 to 502.0 to 5.5
(1 mm Increments)(1 mm Increments)6.0 to 10.0
41 to 5043 to 502.0 to 5.5
(1 mm Increments)(1 mm Increments)6.0 to 10.0
Machining Conditions [ ! ] H−D ≥ 2 [ ! ] D−V ≥ 2 [ ! ] L−T ≥ 1

Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Single Packing
· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment



Working Environment: Class 1,000



Working Environment: Class 10


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Use nitrogen blow
Degassing double packing

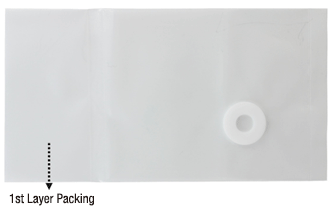

Packaging Example
Degreasing (Part Number: SL-□□)

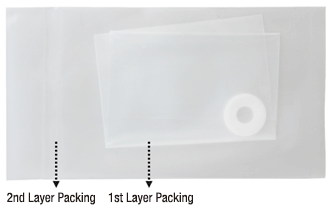

 		Precision Cleaning (Part Number: SH-□□)

[ ! ] Both the first and second layer packaging are degassed.
Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method

Product Part Number

Packaging Type

Effects Compared to Uncleaned Product

Environment (Standard)

Use Case and Process

DegreasingSL-□□Anti-rust packingRemoval of organic stainsGeneral environmentRegular assembly process
Post battery assembly process
Precision cleaningSH-□□Degassing double packingRemoval of organic stains
Removal of contamination and dusts		Clean environment
(Class 10 to 1,000)		Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.    Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...Tải…
30
45
60
  1. 1
Part Number
SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[4-20/0.5]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[4-20/0.5]-H[23-60/1]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[4-20/0.5]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[21-48/1]-H[6-30/0.5]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[21-48/1]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[21-48/1]-H[23-60/1]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJF-D[21-48/1]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[4-20/0.5]-H[6-30/0.5]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[4-20/0.5]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[4-20/0.5]-H[23-60/1]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[4-20/0.5]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[21-48/1]-H[6-30/0.5]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[21-48/1]-H[6-30/0.5]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[21-48/1]-H[23-60/1]-V[0,​2,​2.6]-T[1-8/0.5]-L[2-10/0.5]
SH-FWHJP-D[21-48/1]-H[23-60/1]-V[3-45/0.5]-T[1-8/0.5]-L[2-10/0.5]
SH-FWNJF-D[6-20/0.5]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]
SH-FWNJF-D[21-50/1]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]
SH-FWNJP-D[6-20/0.5]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]
SH-FWNJP-D[21-50/1]-V[2-58/0.5]-H[2-48/0.5]-T[3-50/0.5]
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngShape Material Properties / applications Cleaning Method Hole Type V
(mm) 		L
(mm) 		D
(mm) 		H
(mm) 		T
(mm)

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 104 ～ 206 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 104 ～ 206 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 104 ～ 2023 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 104 ～ 2023 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 1021 ～ 486 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 1021 ～ 486 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 1021 ～ 4823 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 1021 ～ 4823 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 104 ～ 206 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 104 ～ 206 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 104 ～ 2023 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 104 ～ 2023 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 1021 ～ 486 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 1021 ～ 486 ～ 301 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole0 ～ 2.62 ～ 1021 ～ 4823 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more ShoulderedPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningThrough Hole3 ～ 452 ～ 1021 ～ 4823 ～ 601 ～ 8

-

1 Piece(s) 8 Day(s) or more Shouldered Solid[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningNo Hole2 ～ 58-6 ～ 202 ～ 483 ～ 50

-

1 Piece(s) 8 Day(s) or more Shouldered Solid[Fluoropolymer] FluoropolymerClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningNo Hole2 ～ 58-21 ～ 502 ～ 483 ～ 50

-

1 Piece(s) 8 Day(s) or more Shouldered SolidPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningNo Hole2 ～ 58-6 ～ 202 ～ 483 ～ 50

-

1 Piece(s) 8 Day(s) or more Shouldered SolidPEEKClean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Insulation Property / Non-Magnetic / Heat-ResistancePrecision CleaningNo Hole2 ～ 58-21 ～ 502 ～ 483 ～ 50
Part Number
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngShape Material Properties / applications Cleaning Method Hole Type V
(mm) 		L
(mm) 		D
(mm) 		H
(mm) 		T
(mm)

Loading...Tải…

  1. 1

App. Example

Basic InformationThông tin cơ bản

Environmentally Friendly RoHS compliant (10 substances) Dimension Selecting Method Dimension Configurable Sale Type Sold separately

About MISUMIVề Misumi

About this WebsiteVề trang Web này

Useful ToolsCác công cụ hữu ích

Customer ServiceDịch vụ chăm sóc khách hàng

MISUMI Contact Monday to Saturday: 8:00 am - 5:00 pm Order cut off time is 5:00 pm Thứ 2 đến Thứ 7: 8 giờ sáng đến 5 giờ chiều Hạn chót đặt hàng là 5 giờ chiều

  • Tel:Số điện thoại:0222-361-1555
  • Fax:Số Fax:0222-361-2555
  • InquiryYêu cầu

MISUMI APP

MISUMI APP QR

Install MISUMI APP

Mobile View Xem trên điện thoại

MISUMI Vietnam Company Limited, Legal Representative: Tomohiro Watanabe,
phone: 0222-361-1555, e-mail: cs@misumi.com.vn, Enterprise Code: 0107514576,
Date of Issuance: 22 July 2016, Place of Issuance: Bac Ninh, Business Certificate No. 6573041568-KD dated 27 September 2016 issued by the People's Committee of Bac Ninh

Công ty TNHH MISUMI Việt Nam, Đại diện theo pháp luật: Tomohiro Watanabe,
Điện thoại: 0222-361-1555, e-mail: cs@misumi.com.vn, Mã số doanh nghiệp: 0107514576,
ngày cấp 22/7/2016, nơi cấp: Bắc Ninh, Giấy phép kinh doanh số: 6573041568-KD ngày cấp 27/9/2016 bởi UBND tỉnh Bắc Ninh

online.gov.vn

Copyright © MISUMI Corporation All Rights Reserved.

Close

Comparison list
