Product DetailProduct Detail

Product Description

Two types of cleaning methods are available: "degreasing" and "precision cleaning." They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
Cleaning Method Product Part Number Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Use Case
Degreasing SL-□□ Anti-rust packing Removal of organic stains General environment Regular assembly process
Post battery assembly process
Precision cleaning SH-□□ Degassing double packing Removal of organic stains
Removal of contamination and dusts		 Clean environment
(Class 10 to 1,000)		 Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

● Straight, Sphere
Part Number[M] MaterialCleaning Method
Insertion Guide Shape, ToleranceMaterial CodeD ToleranceCleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SL-SNPPKM(m6)
G(g6)
H(h7)		PEEK (Natural Ivory)DegreasingGeneral environmentSingle packingGeneral environment
SH-SNPPrecision cleaningClass 1,000Degassing double packingClass 10
[ ! ] Core rod material is SUS304.
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the specification table.

Specification Table

Part Number—D—L
SL-SNPPKM—D1.5—L7.5
SH-SNPPKM—D1.5—L10.0
dK
0.710
1.016
○ Core Rod Length
The smaller of the followings. L− (D/2 + (2)) or the value of row K in the table above.
[ ! ] There is a flat part of ø0.2 or less at the tip.
[ ! ] The outer diameter tolerance is the result of measurement at room temperature.
Part NumberDL Configurabled
Insertion Guide ShapeMaterial CodeD Tolerance0.01 mm Increments0.1 mm Increments
SL-SNPPKM(m6)
G(g6)
H(h7)		1.00 to 2.005.0 to 20.00.7
SH-SNP2.01 to 3.001.0

Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Single Packing
· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment



Working Environment: Class 1,000



Working Environment: Class 10


IPA Cleaning
Wash with pure water (10 MΩ·cm)
after high-pressure water
jet cleaning (Ro water)
Use clean air blow
Use nitrogen blow
Degassing double packing
Packaging Example

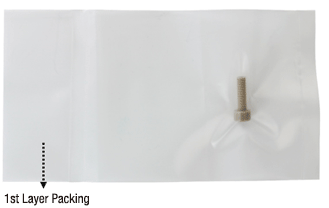

Degreasing (Part Number: SL-□□)

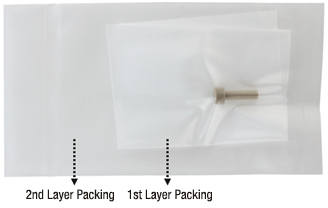

 		Precision Cleaning (Part Number: SH-□□)

[ ! ] Both the first and second layer packaging are degassed.
Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method

Product Part Number

Packaging Type

Effects Compared to Uncleaned Product

Environment (Standard)

Use Case and Process

DegreasingSL-□□Anti-rust packingRemoval of organic stainsGeneral environmentRegular assembly process
Post battery assembly process
Precision cleaningSH-□□Degassing double packingRemoval of organic stains
Removal of contamination and dusts		Clean environment
(Class 10 to 1,000)		Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process

Part Number

  • Incomplete part number.
    Please use left hand selections to complete a part number.    Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...Tải…
30
45
60
  1. 1
Part Number
SH-SNPPKG-D[1-3/0.01]-L[5-20/0.1]
SH-SNPPKH-D[1-3/0.01]-L[5-20/0.1]
SH-SNPPKM-D[1-3/0.01]-L[5-20/0.1]
SL-SNPPKG-D[1-3/0.01]-L[5-20/0.1]
SL-SNPPKH-D[1-3/0.01]-L[5-20/0.1]
SL-SNPPKM-D[1-3/0.01]-L[5-20/0.1]
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngLocating Side O.D. Tolerance Mounting Side Outer Dia. D
(mm) 		Mounting Side Tolerance Cleaning Method Mounting Section Length L
(mm)

-

1 Piece(s) 9 Day(s) or more g61 ～ 3g6Precision Cleaning5 ～ 20

-

1 Piece(s) 9 Day(s) or more h71 ～ 3h7Precision Cleaning5 ～ 20

-

1 Piece(s) 9 Day(s) or more m61 ～ 3m6Precision Cleaning5 ～ 20

-

1 Piece(s) 9 Day(s) or more g61 ～ 3g6Degreasing5 ～ 20

-

1 Piece(s) 9 Day(s) or more h71 ～ 3h7Degreasing5 ～ 20

-

1 Piece(s) 9 Day(s) or more m61 ～ 3m6Degreasing5 ～ 20
Part Number
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipSố ngày giao hàngLocating Side O.D. Tolerance Mounting Side Outer Dia. D
(mm) 		Mounting Side Tolerance Cleaning Method Mounting Section Length L
(mm)

Loading...Tải…

  1. 1

Basic InformationThông tin cơ bản

Basic Shape Straight Environmentally friendly RoHS Compliant (10 Substances) Characteristics/Applications Clean Washed
Insertion Guide Tip Shape Round Insertion Guide Tip Type Spherical Insertion Guide Specifications Not Provided
Mounting Side Shape Straight (Press-Fit) Surface Treatment Not Provided Heat Treatment Not Provided
Material PEEK (Natural Ivory) Material Certificate Available Material Certificate: Materials PEEK (Natural Ivory) | Metal Hub Insert: SUS304
